Stainless Steel Wedge Mesh

As a trusted manufacturer of precision filtration products, Jinhai Zhongda specializes in high-performance Stainless Steel Wedge Mesh (also known as wedge wire screens) engineered for durability, corrosion resistance, and superior filtration efficiency. Crafted from top-grade materials and tailored to diverse industrial needs, our wedge wire screens stand out as the preferred choice for critical applications requiring reliability and long service life.

Core Material Advantages

We prioritize material quality to ensure optimal performance across harsh and demanding environments. Our stainless steel wedge mesh is available in a comprehensive range of materials, including:

• Standard grades: AISI 304, AISI 316 (including 316TI), AISI 321, and AISI 316L

• High-performance options: Super Duplex Stainless Steel (UNS S32750)

• Specialized alloys: Monel (UNS N04400) – available upon customer request

Compared to carbon steel galvanized wedge screens, our stainless steel variants offer exceptional tensile strength, resistance to corrosion, oxidation, and chemical wear, making them ideal for long-term use in challenging conditions such as seawater, acidic/alkaline environments, and high-temperature applications.

Key Filtration Specifications

Our wedge wire mesh is designed with precise slot openings to meet targeted filtration requirements. The 0.25mm (250 micron) and 0.50mm (500 micron) slot sizes are highly sought-after for fine filtration applications, delivering consistent particle separation and minimal clogging. For broader screening needs, we offer slot openings ranging from 0.3mm to 5mm, catering to both fine and coarse separation tasks.

Comprehensive Product Range

Jinhai Zhongda supplies a full spectrum of stainless steel wedge wire products, covering screens, panel filters, and custom components. Our core offerings include:

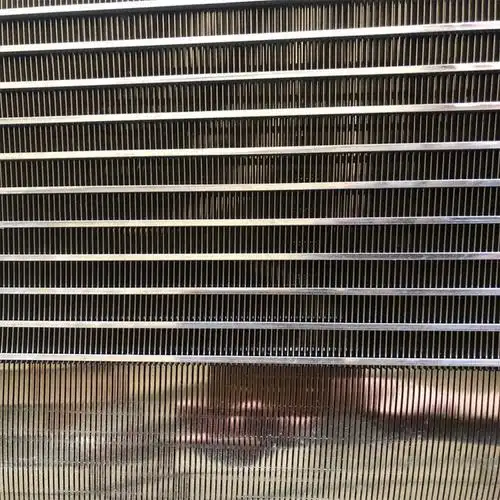

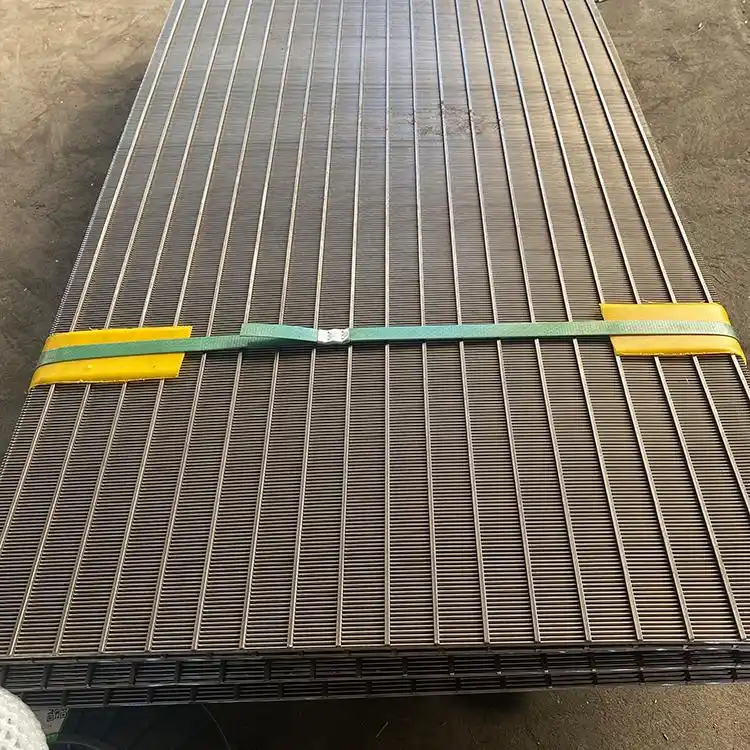

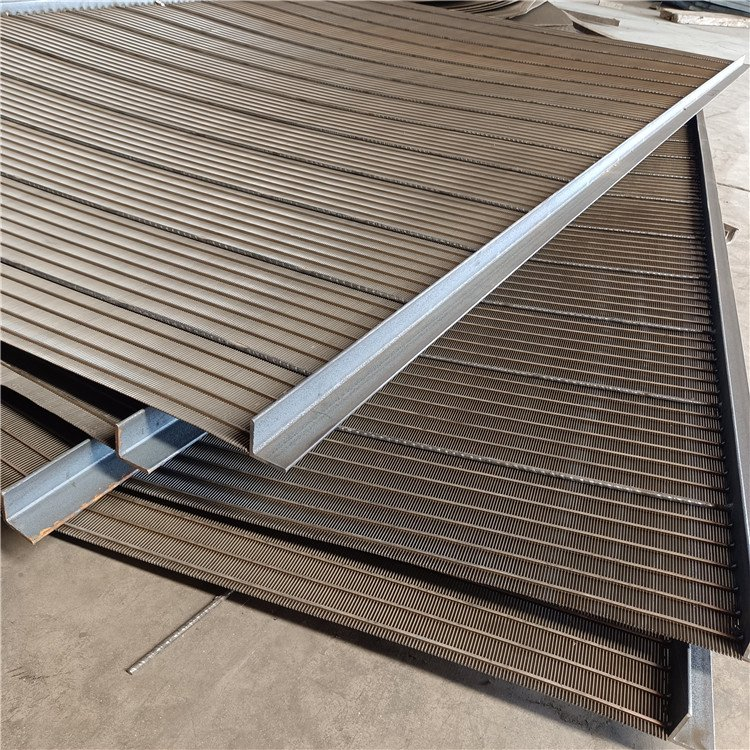

1. Wedge Wire Sheets & Panels

• Versatile panels in standard and custom dimensions: e.g., 2.4m (L) x 1m (W), 1850mm x 1350mm, 60" x 60", and 15" ID x 45" long

• Precision-engineered configurations: 2mm wide x 3mm deep top wires on 3mm wide x 5mm deep support bars (50mm support bar centers, 5mm top wire centers)

• Aperture options: 1mm (running along 1350mm width), 590 micron, 3mm slot width, and more

2. Filter Elements & Specialized Screens

• Wrap-welded screen elements (e.g., 47 Profile x 590 micron aperture, 60mm/90mm OD for DN50 pipe)

• Reverse axial style screens (inside-to-out flow) with #60 wrap wire on #90 support rods, 0.023" (30 mesh) slot size

• Parabolic wedge-wire screens (0.3mm, 3mm, 5mm apertures) for wastewater screening, with flow rates up to 400 cubic metres per hour (3mm aperture)

3. Application-Specific Solutions

• Brewery mash tun screens: 0.030" slot opening, 1.5-inch supports (3-inch spacing), heavy wire construction

• Dewatering screens: 200 micron slot, 400cm (L) x 40cm (W) dimension, 304 stainless steel

• Seawater strainer screens: Monel or Super Duplex Stainless Steel construction for extreme corrosion resistance

• Lateral wedge wire screens: 0.25mm slot open area, 3" x 40" / 3" x 47" lengths (316 stainless steel)

4. Custom & Specialized Configurations

• V-formed stainless steel wedge wires for enhanced structural stability

• Large-format screens: 3.8m (W) x 10m (H) screen field area (3mm slot width, 1.5m maximum water difference)

• Tilted panels (400mm x 800mm or standard equivalents) for optimized filter performance

• Fine mesh options: 200 micron, 300 micron, 0.250 micron slot sizes

Unmatched Performance & Versatility

Our stainless steel wedge mesh is engineered with continuous slot design, ensuring uniform flow distribution, high open area, and easy cleaning – critical for maintaining filtration efficiency over time. Whether used in water treatment, wastewater screening, brewery processes, dewatering, seawater filtration, or industrial separation, our products deliver consistent performance even in high-pressure and corrosive environments.

At Jinhai Zhongda, we combine advanced manufacturing techniques, strict quality control, and flexible customization to meet your unique project requirements. From standard sizes to bespoke solutions, our stainless steel wedge mesh is built to exceed expectations, providing reliable filtration and screening for years to come.

Contact us today to discuss your specific needs – we’re ready to deliver tailored stainless steel wedge mesh solutions that align with your application goals.
